Description
Declaration:
This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully.
Since we can’t control over the correct use, installation, application, or maintenance of our products, we’veno liability shall be assumed nor accepted for any damages,
losses or costs resulting from the use of the product. Any claimsarising from the operating, failure of malfunctioning etc. will be denied.
We assume no liability for personal injury,consequential damages resulting from our product or our workmanship.
Features:
1. Water- proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up, acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for litium or nickel battery /Over-heat protectionThrote signal loss protection / Motor blocked protection/
6. Easily programmed and compatible with pocket-sized program card.
Specification:

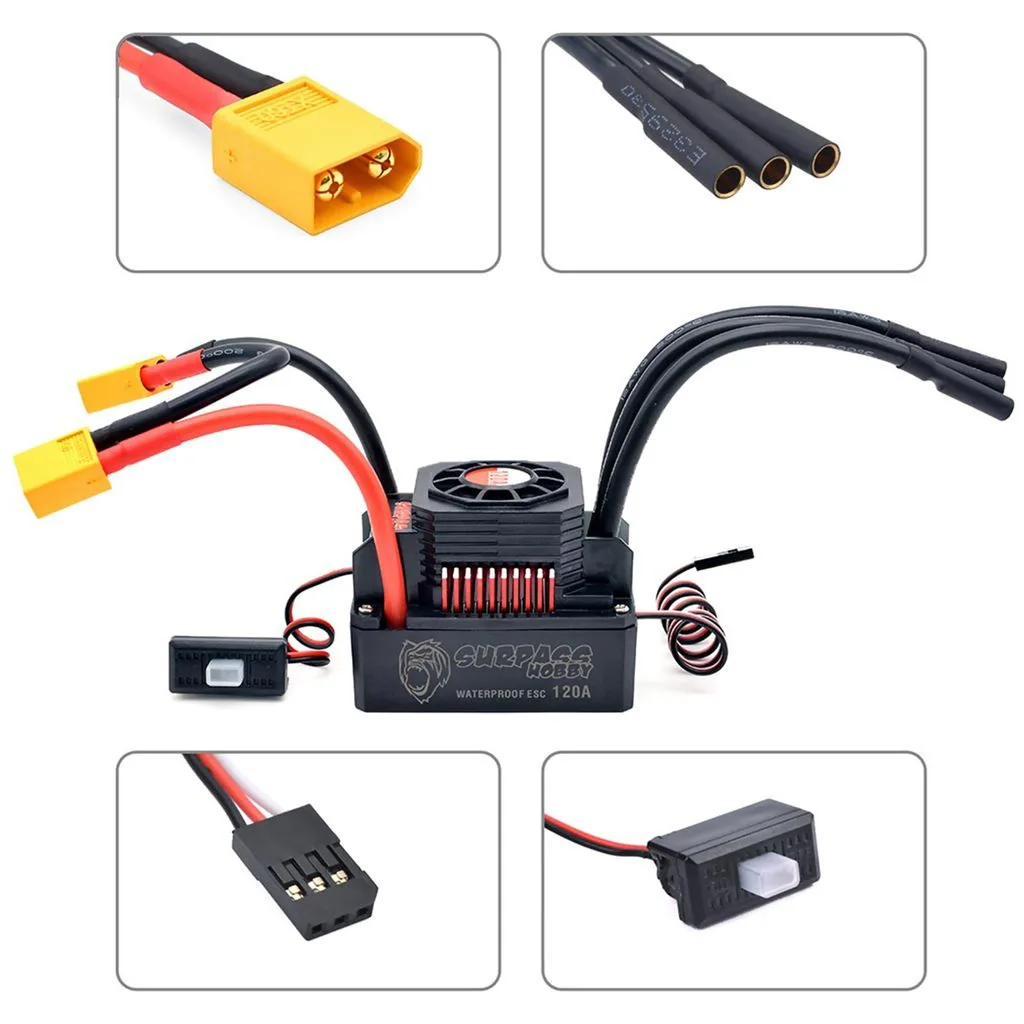

Brand: SURPASSHOBBY
Name: KK 120A ESC
Cont.Current/Burst Current: 120A/600A
Motor Type: Sensorless Brushless Motor
For 4S Lipo or 12 cells NiMH :
          1. on-road: 40XX-Size or smaller motor with the KV<3000KV
          2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2500KV
For 6S Lipo or 18 cells NiMH :
          1. on-road: 40XX-Size or smaller motor with the KV<2500KV
          2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2000KV
Suitable Car: 1/8th or 1.10th Car
Resistance: 0.00035ohm
Battery: 3-6S Lipo/9-18Cells NiMH
BEC Output: 6.1V/3A (Switch mode)
Dimensions/Weight: 160x100x62mm/135g
Programming card
Brand: SURPASS HOBBY
Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off
Start mode:Medium, soft, strong
Max brake force: 25%, 50%, 75%, 100%
Max reverse force: 25%, 50%, 75%, 100%
Neutral range: 6%, 9%, 12%, work state
Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off
Start mode:Medium, soft, strong
Max brake force: 25%, 50%, 75%, 100%
Max reverse force: 25%, 50%, 75%, 100%
Neutral range: 6%, 9%, 12%, work state
