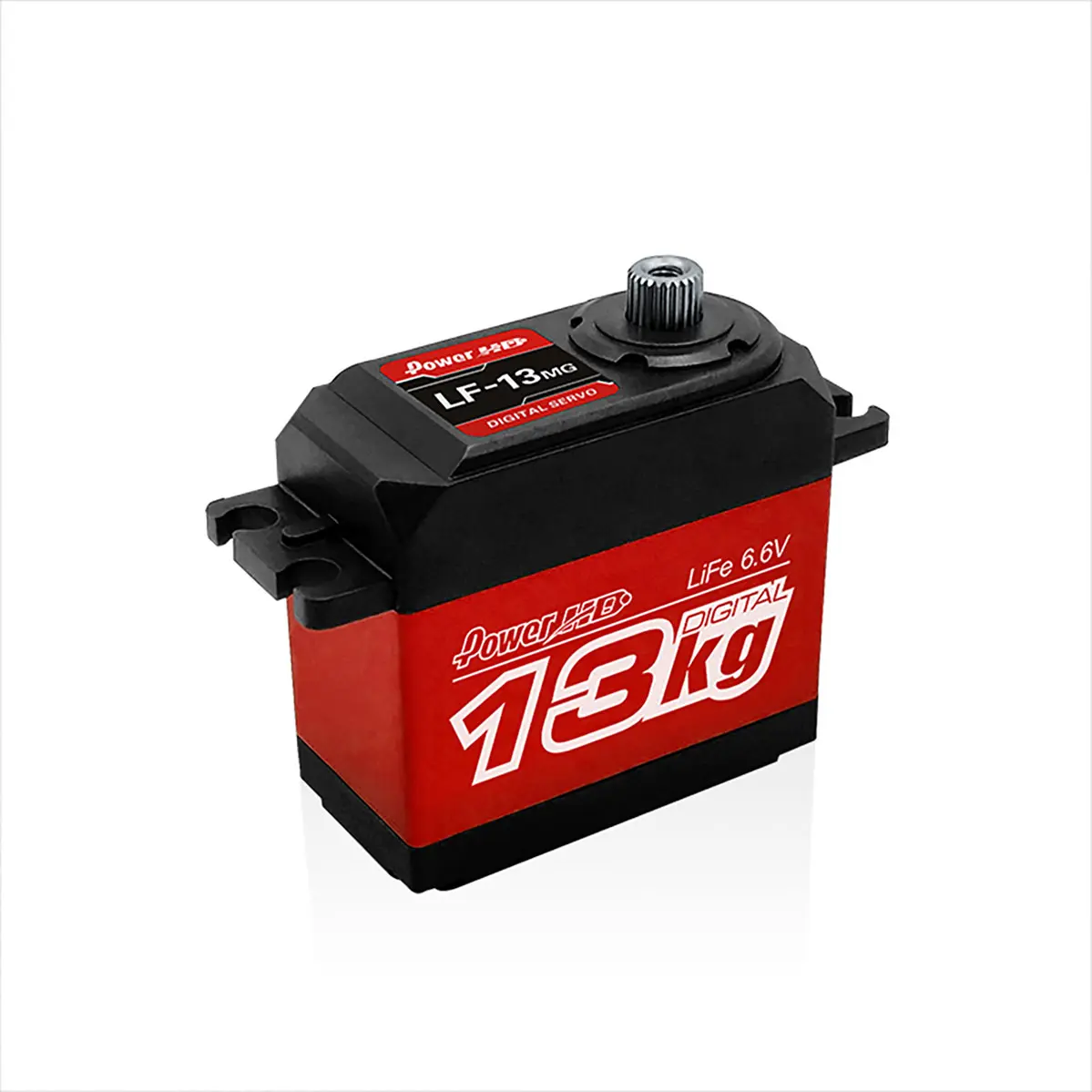

Servo Hd Lf-13mg Mg Digital 13.0kg/0.12sec Dble Bb Alu Case Met. Gear

Description

Torque(4.8V): 10.5 kg-cm (145.8 oz/in)
Torque(6.6V): 13.0 kg-cm (180.5 oz/in)
Speed: 0.15 sec (4.8V) │ 0.12 sec (6.6V)
Operating Voltage：4.8 ~ 6.6 DC Volts
Weight: 60 g (2.12 oz)
Bearing Type：Ball Bearing x 2
Motor Type：DC Motor

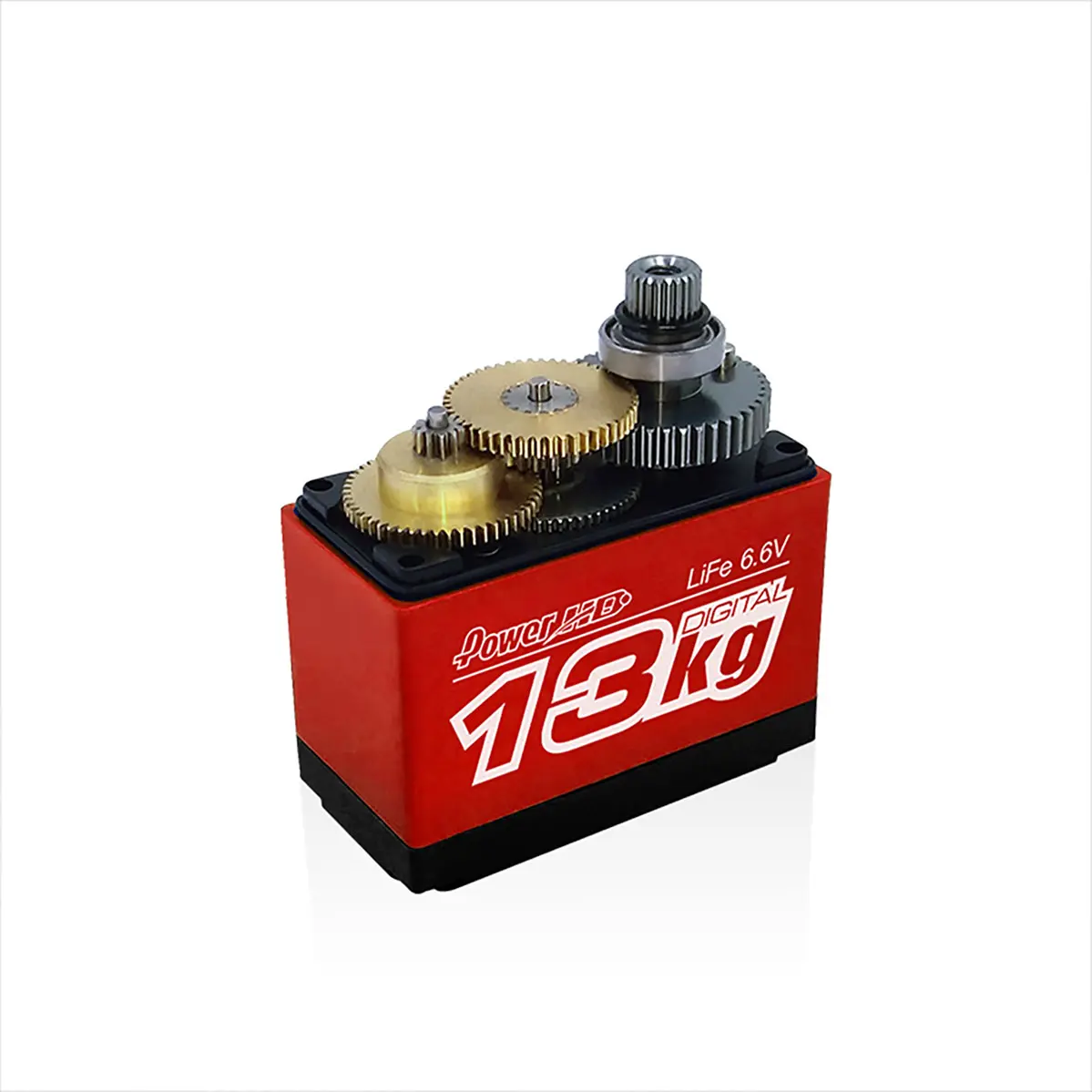

Gear Type：Copper & Aluminum
Operating Temperature：-10℃~60℃
Working frequency：1520μs / 333hz
Size：40.7 x 20.5 x 39.5 mm ( 1.60 x 0.80 x 1.55 in)
