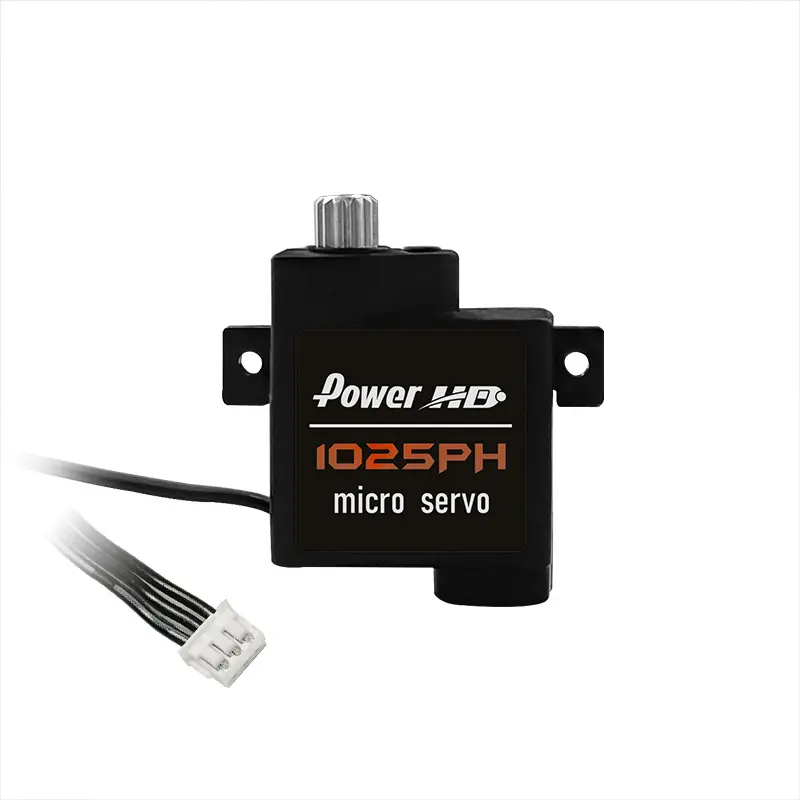

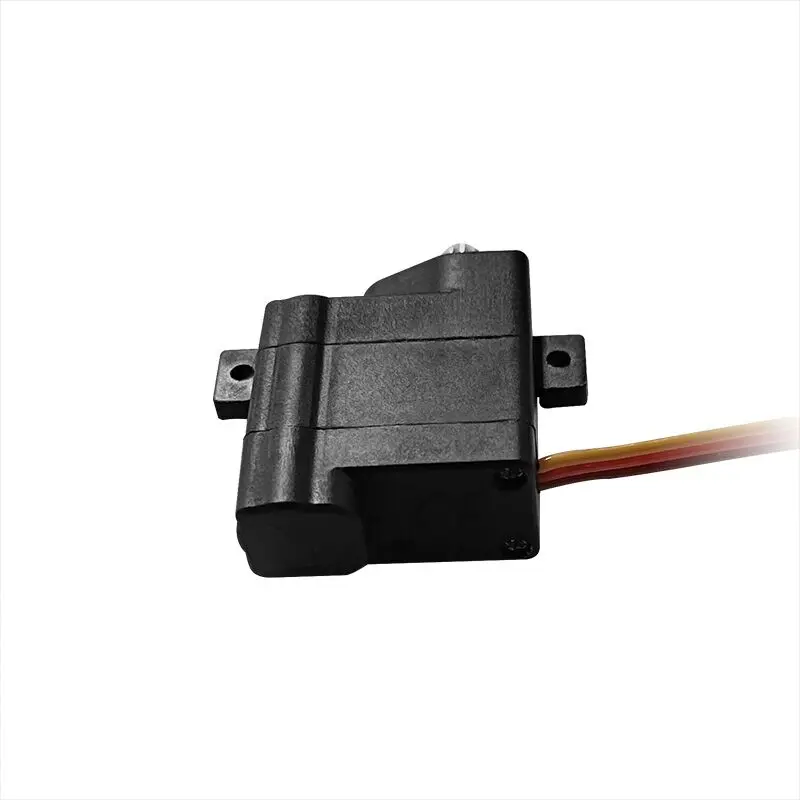

Power Hd Micro Rc Servo Hd1025ph (1.5kg/0.07s)

Description

Torque(4.8V): 1.0 kg-cm (13.89 oz/in)
Torque(6.0V): 1.5 kg-cm (20.83 oz/in)
Speed: 0.075 sec (4.8V) │ 0.070 sec (6.0V)
Operating Voltage：4.8 ~ 6.0 DC Volts
Weight: 4.8 g (0.17 oz)
Bearing Type：Ball Bearing x 1
Motor Type：DC Motor
Gear Type：Metal
Connector wire length:JST ZH 1.5 3Pin 60mm
Operating Temperature：-10℃~50℃
Working frequency：1520μs / 50hz
Size：17.2 x 9.0 x 18.7 mm ( 0.68 x 0.35 x 0.74 in)
