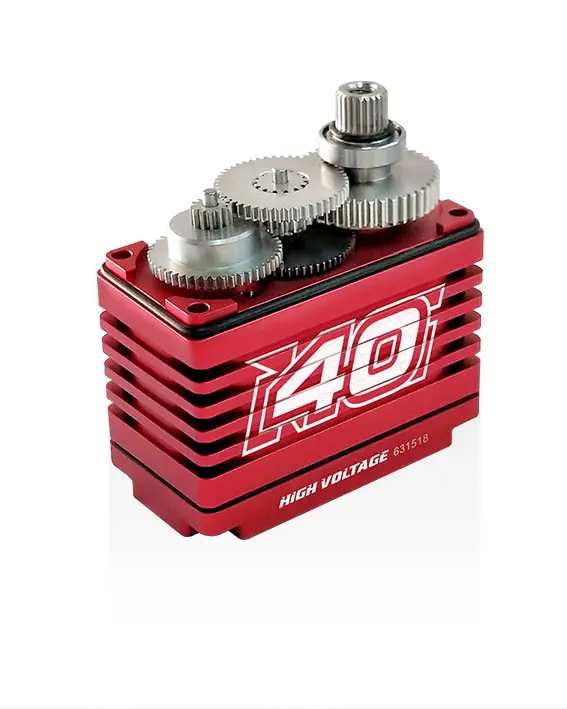

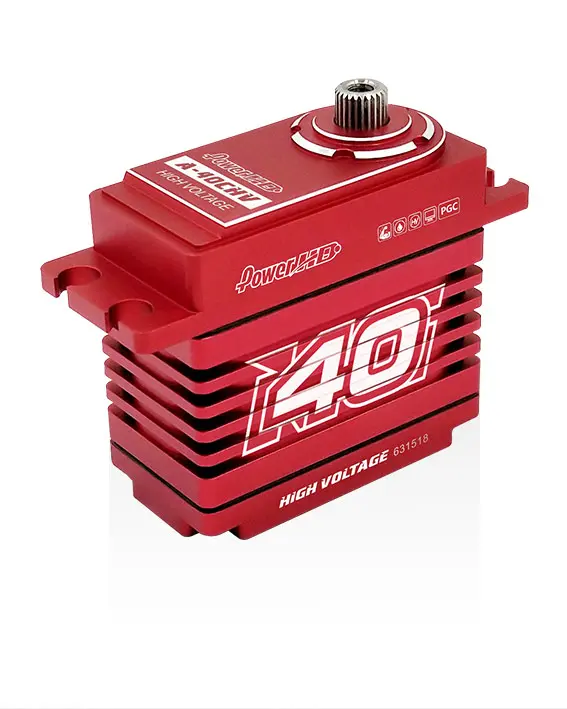

Servo Powerhd a-40chv Plane Coreless Alu Case Hv Progr (40kg/0.10s)

Description

Torque(6.0V): 25.0 kg-cm ( 347.2 oz/in)
Torque(7.4V): 35.0 kg-cm ( 486.1 oz/in)
Torque(8.4V): 40.0 kg-cm ( 555.5 oz/in)
Speed: 0.14 sec (6.0V)¦0.12 sec (7.4V)¦0.10 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 80 g (2.82 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Coreless Motor
Gear Type: Steel & Aluminum
Operating Temperature: -20~60°C
Working frequency: 1520µs / 333hz
Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
