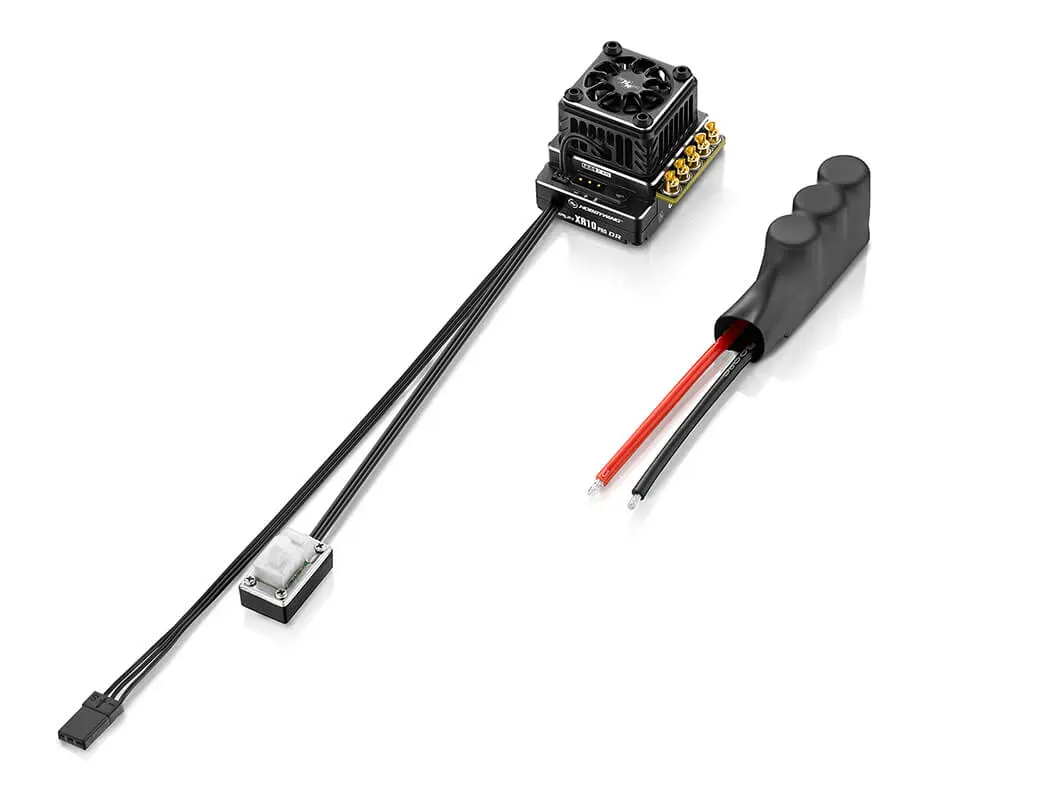

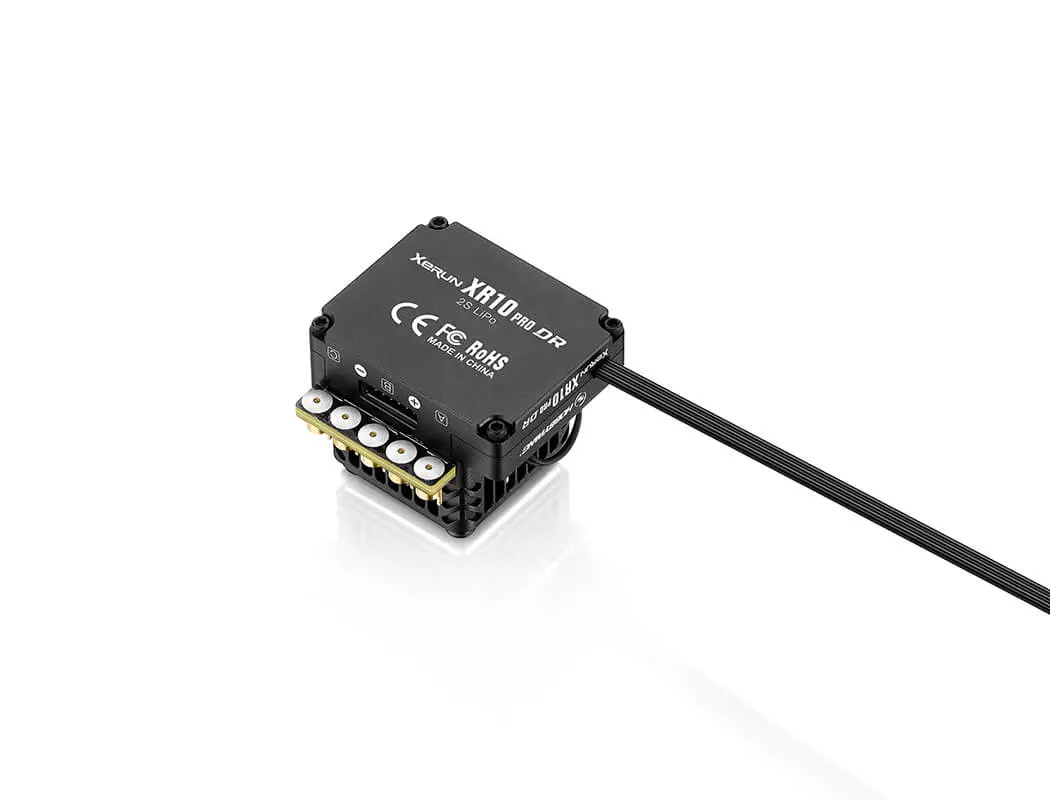

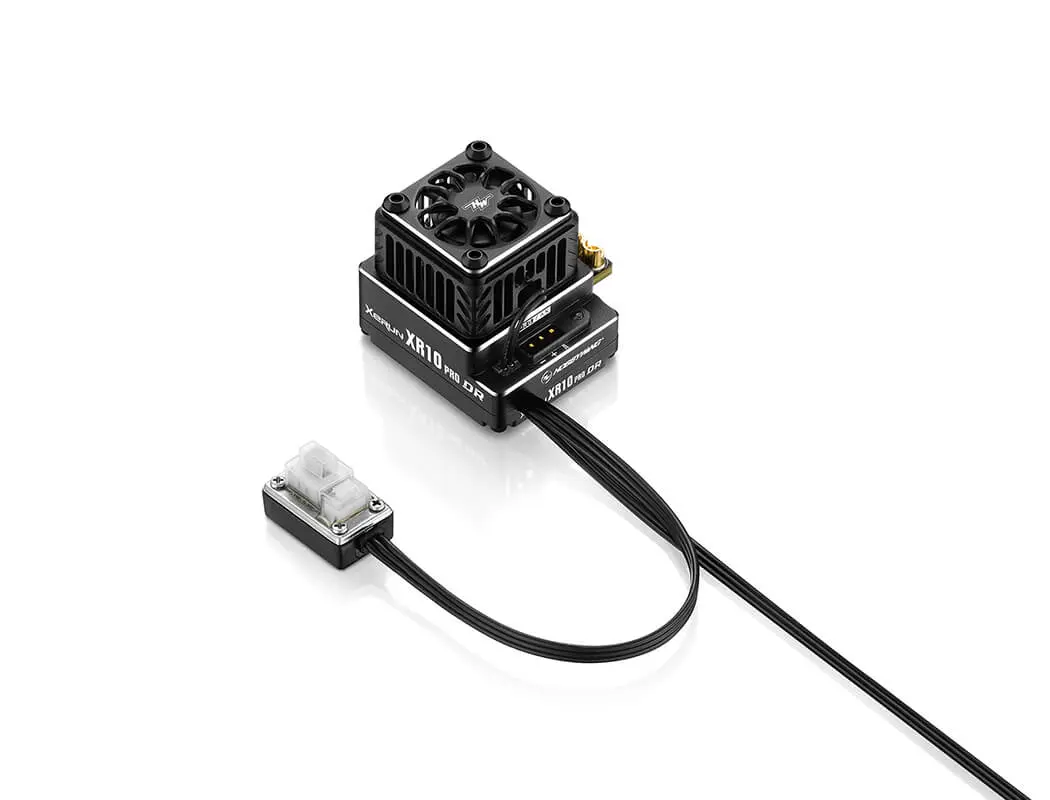

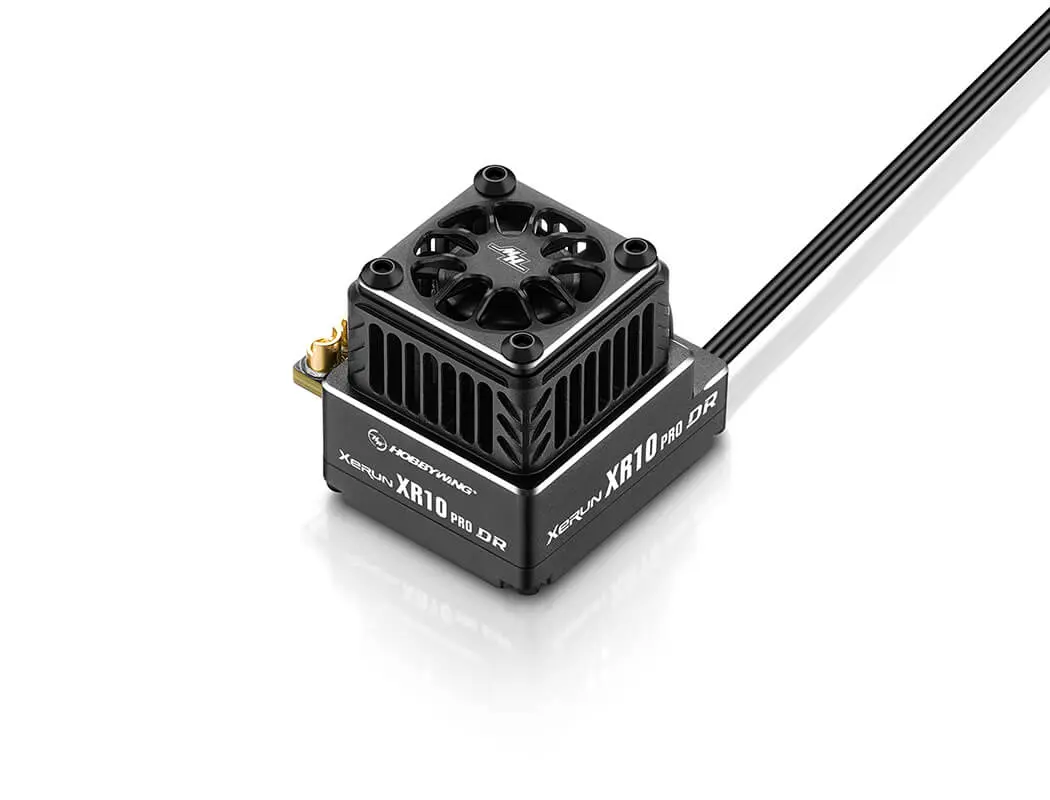

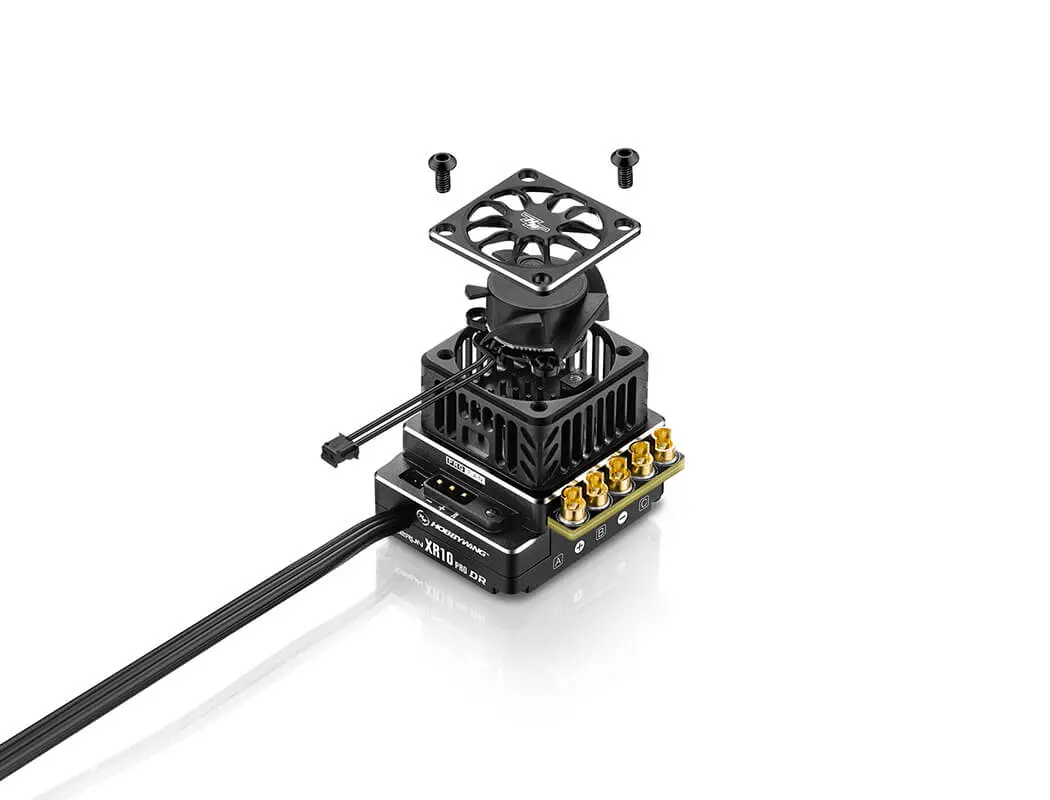

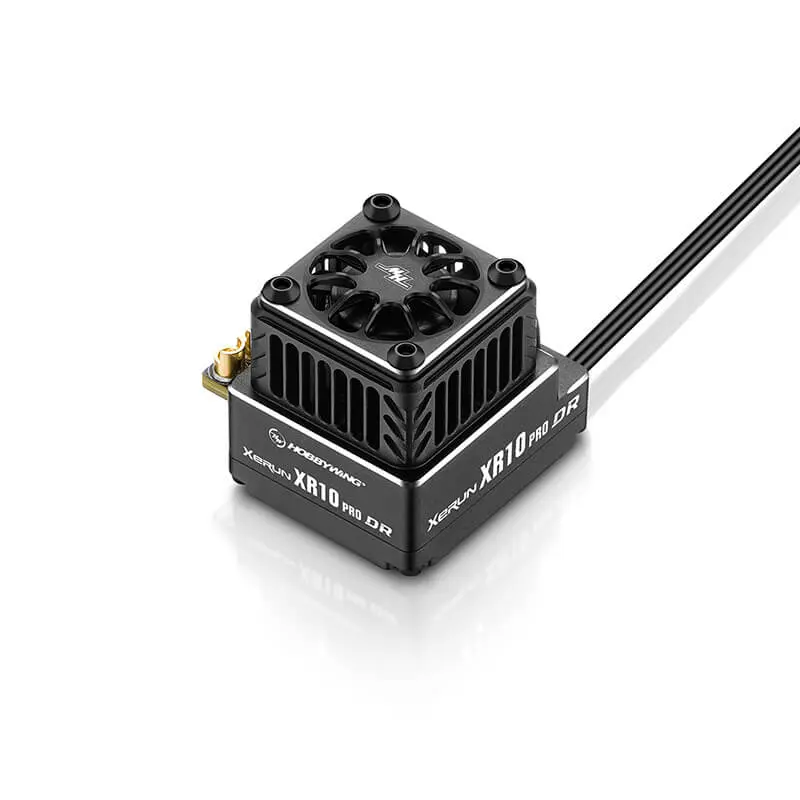

Hobbywing Xerun Xd10 Pro DR Drag Race Brushless Speed Control

HOBBYWING XERUN XD10 PRO DR DRAG RACE SPEED CONTROL

Specifications

Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: NO
Cont./Peak Current: 200A/1200A
Input Voltage: 2S Lipo
BEC Output: Switch Mode 5V-7.4V @5A
Input Wires: Black-10AWG-200MMmm*1 Black-10AWG-200MMmm*1
Output Wires: Black-10AWG-200MMmm*3
Input Connectors: No
Output Connectors: No
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Supported
Program Port: Separate
Data Recording Extreme value: Supported
Real-time Data: Supported
Historical Data (Graph): Supported
Firmware Upgrade: Supported
Size: 37.7*37.2*33.2mm
Weight: 137g (Included wires&connectors)
Suitable Motors: SD BL Motors
Vehicles: 1/10th Drag Racing
KV Rating/T Count: XERUN 3652/3662 DRX
