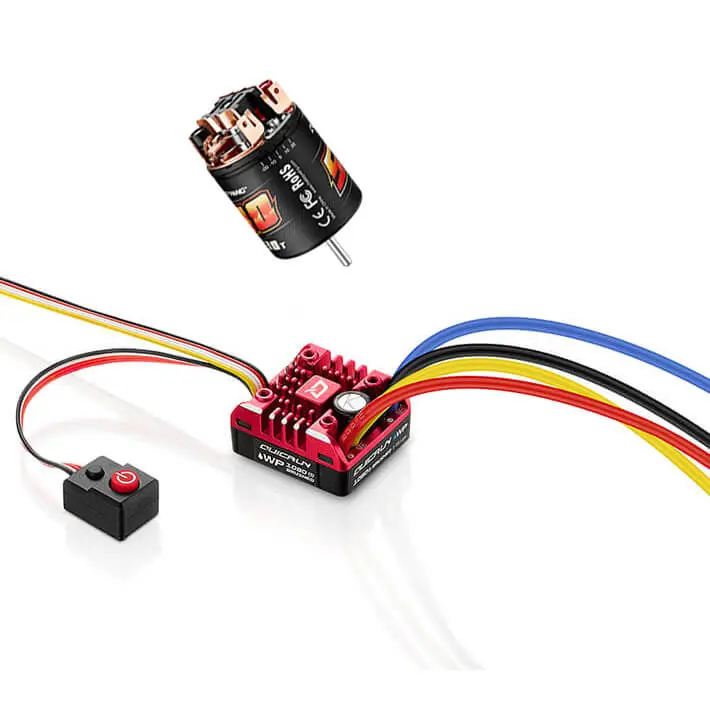

Hobbywing Quicrun Combo 1080 G2 Esc + 540 40T Brushed Motor

Description

HOBBYWING QUICRUN COMBO 1080 G2 ESC + 540 40T BRUSHED MOTOR

The first “Real Car Mode” ESC from Hobbywing is an exciting release and features four running modes and a real time drag break adjustment.
In the Real Car mode the direction of the motor is switchable in real time by using a spare channel on the transmitter, you get the normal operation of pulling the trigger for “forward” and pushing the trigger for “brake” and then with the reverse enabled pulling the trigger will give you “reverse”.This new feature will give you a unique RC experience unlike any other! (Requires a spare channel on the receiver).
In addition to the switchable Real Car mode the drag brake force is also adjustable in real time using an AUX channel on the handset.
The Quicrun WP 1080G2 is fully waterproof to IP67 standards, this a great step forward for all weather RC Rock Crawler applications.
ESC Features

4 Innovative real car running modes – an RC first!
Fully IP67 waterproof design for all conditions. (Note: please clean and dry it after use for avoiding rusty connectors)
Highly reliable electronic switch design prevents mechanical switch failure due to dirt, water, dust and etc.
Tuneable drag brake and drag brake rate for different vehicles, tracks and control feel.
Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
Real time adjustable drag brake force using an AUX channel of a transmitter and the ability to switch the drag brake force anytime and anywhere on demand.
Multiple protections: low-voltage cut-off protection, thermal protection and throttle signal loss protection.
Separate programming port to easily connect the LED program card to the ESC.
Single-button ESC programming and factory reset.
ESC programming via Hobbywing LED program card.

ESC Specifications
Application: 1/10th Rock CrawlerMotor Type: Brushed Motor (540 / 555 size motors)Cont./Peak Current: 80A/400AInput Voltage: 2-3S LiPo/5-9S Cell NiMHBEC Output: 6V / 7.4V / 8.4V @ 4A (Switch-mode)Wires & Connectors: Black-14AWG-200mm / Red-14AWG-200mmProgramming device: LED program boxSize: 37.2 x 31.9 x 18.4mmWeight (w/ wires): 70.2g
Motor Features

Specialized Carbon Brushed for extended life
Zero-Cogging Torque Design
Excellent efficiency
Outstanding Response and Control
Adjustable mechanical timing of the motor
Modular design for easy service and cleaning

Motor Specifications
Model: QUICRUN Brushed 540PN: HW30404314Slot: 3Turns: 40T([email protected]): 10500Input Voltage: 12.6VDiameter/ Length(mm): φ=36mm(1.42in) L=53mm(2.09in)Shaft Diameter/ Length (mm): φ=3.175mm(0.125in) L=16.5mm(0.65in)Applications: 1/10 On-road / Buggy / Crawler & 2WD TruckWeight: 169g
