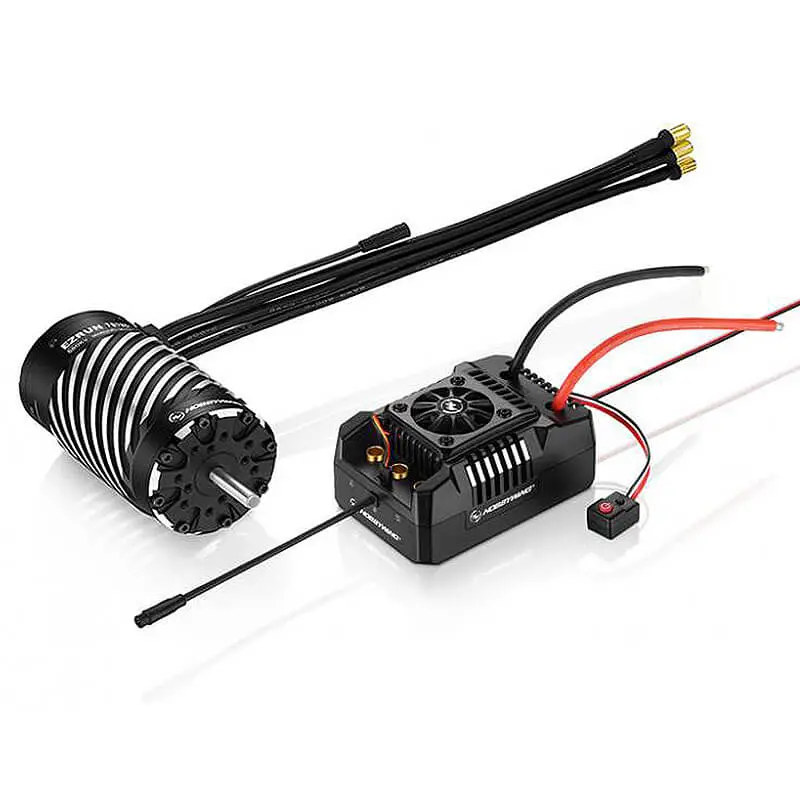

Hobbywing Combo Ezrun Max4 Hv Esc 70125/560Kv Motor

Description

HOBBYWING COMBO EZRUN MAX4 HV ESC 70125/560KV MOTOR

Hobbywing EzRun MAX4-HV 300A Features

Super-powerful BEC switching mode with 10A constant current and 25A instantaneous
Flame-retardant circuit to protect the battery connectors
Integrated protection: cut-off voltage, overheating, loss of signal, etc.
Programmable via LCD Programming Card or OTA Module
Real-time data recording

Specifications
Power: 300A with Peak at 2000AMotor Type: Sensored and SensorlessMotor Limit: 12S 600 Kv in 70125Power Supply: Lipo 6 to 12SBEC: 6 V / 7.4 V / 8.4 of 10A with Peak at 20ADimensions: 125x85x61.7mmWeight: 775.4 g
Hobbywing EzRun 70125SD 560KV Sensored Motor Features

Sensor mode in perfect combination with Ezrun MAX4-HV
CNC aluminium housing, 0.2mm silicon steel sheets
Four sintered NdFeB magnets for super torque, stable performance and explosive power
New innovative sensor interface
Waterproof and dustproof thanks to rolling rubber coating
Independent high-precision encoder in the motor to communicate rotor position
More power and less heat generation

Specifications
Power: 560KvCompatible: Lipo 8 to 12SMotor Shaft: 8mmLength: 125mmAxle Length: 30mmDiameter: 70mmWeight: 1995g
