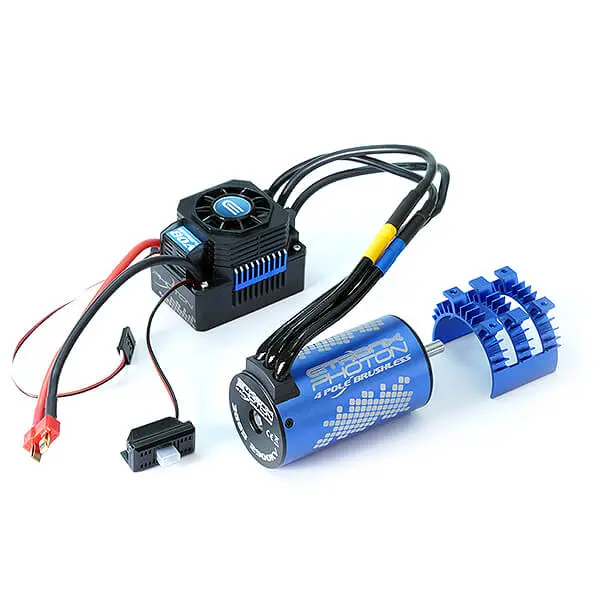

Etronix Photon 80A Brushless Esc & 2900Kv 3665 Motor Combo

Description

ETRONIX PHOTON 80A BRUSHLESS ESC & 2900kv 3665 MOTOR COMBO

With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application.
With the optional programmable set up card (ET0449) the user can finely tune different parameters within the ESC to suit their particular needs.
ESC Features

Waterproof (without fan installed)
2-3S Lipo
6-9S NiMH/NiCd
3A 6.1V BEC Output
Sensorless brushless motor
2S 3670 size or smaller 3000kV Motor limit
3S 3670 size or smaller 2500kV Motor limit
80A Constant current
480A Burst Current

ESC Specifications

Dimensions :- 51.5×38.5×38.5mm (without fan)
Weight :- 84g

Motor Specifications

KV Rating: 2900KV
Size: 3665
Max RPM: 50000
Max voltage: 14.8v
Max amps 95A
Rotor poles: 4
Diameter: 35.5mm
Length: 64.5mm
Shaft length: 17mm
Weight: 250g
