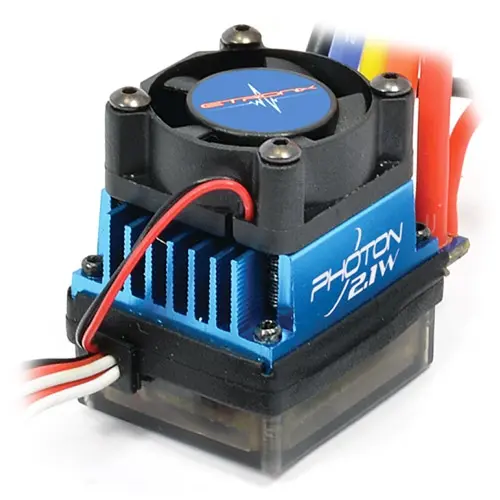

Etronix Photon 2.1w 60amp Esc Brushless FTX Spec (With Short Wire/Connectors)

ETRONIX PHOTON 2.1W 60AMP ESC BRUSHLESS FTX SPEC (WITH SHORT WIRE/CONNECTORS)

A replacement ESC wired specifically for FTX cars.

With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application. With the additional programmable set up card (ET0107) the user can finely tune ten different parameters within the ESC to suit their particular needs. (available separately)

When choosing your new ESC/ESC and motor combo, please take note of the relevant motor and battery cell count limits.

ESC Motor Limit:

• 2S Battery - 4350KV
• 3S Battery - 2950KV
• 4S Battery - Not Compatible

Spec Check:

• Splashproof
• 2-3S Lipo
• 5-10S NiMH/NiCd
• 2A 6V BEC Output
• 4 Pole sensorless brushless motor
• 60A Constant Current
• 380A Burst Current
• Dimensions 45x33x37mm (without fan)
• Weight 90g
