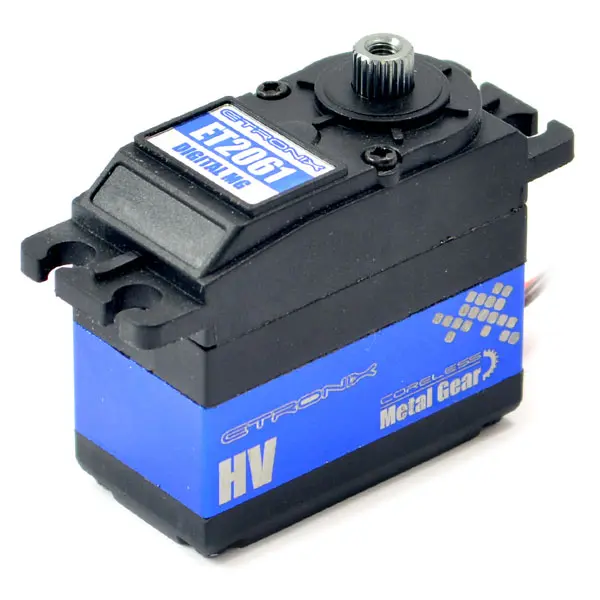

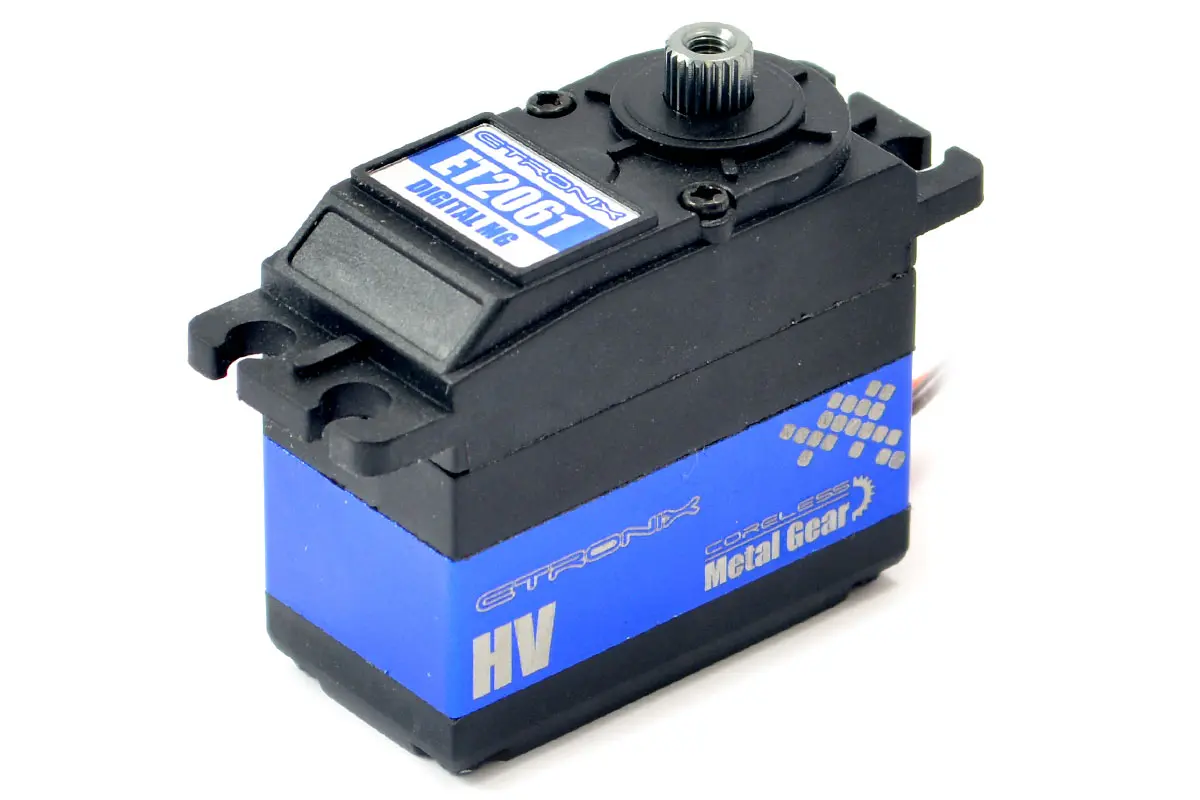

Etronix 15.8KG/0.09S STD Digital High Voltage Servo Metal Gear

ETRONIX 15.8kg/0.09s STD DIGITAL HIGH VOLTAGE SERVO METAL GEAR

Features

• High performance digital high voltage coreless standard servo
• High-precision aluminium gears with hard anodizing
• Dual ball bearings
• CNC aluminium middle hull
• Waterproof

Specifications

Dead Band: 1μs
Working Frequency: 1520μs / 330hz
Motor: Coreless motor
Operating Speed (6.0V): 0.112sec/60°
Operating Speed (8.4V): 0.095sec/60°
Stall Torque (6.0V): 12.86 kg.cm (178.59oz/in)
Stall Torque (8.4V): 15.83kg.cm (219.83oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59 X0.80X1.43 in
Weight: 59.3g (2.09oz)
Connector Wire Length: JR 265 mm (10.43in)
